Model
|
||
|---|---|---|
|
Engine
|
Honda GX240 Commercial
|
Vanguard 18 HP
|
|
Engine CC’s
|
242
|
570
|
|
Chipper Capacity
|
3″
|
4″
|
|
Chipper Hopper Opening
|
12-1/4″ x 8″
|
19″ x 13-1/2″
|
|
Chipper Hopper Throat
|
4″ x 3-1/2″
|
4-1/2″ x 4″
|
|
Flywheel Size
|
12″ x 1/2″
|
18″ x 3/4″
|
|
Flywheel Weight (lbs.)
|
17
|
49
|
|
Shredder Capacity
|
1″
|
1-1/2″
|
|
Hammers
|
24
|
48
|
|
Shredder Hopper Opening
|
17-1/2″ x 16-1/2″
|
23-1/2″ x 21-1/2″
|
|
Shredder Hopper Throat
|
8-1/2″ x 4″
|
13-1/4″ x 7″
|
|
Rotor Weight (lbs.)
|
40
|
148
|
|
Start
|
Manual
|
Electric
|
|
Transport
|
Highway towable
|
Highway towable
|
|
Weight (lbs.)
|
274
|
1100
|
|
Storage Space (L x Wheelbase x H)
|
66″ x 42″ x 49″
|
80″ x 60″ x 63″
|
|
Machine Warranty
|
2 yrs. consumer, 90 day commercial
|
2 yrs. consumer, 90 day commercial |
|
Engine Warranty
|
3 yrs. limited
|
2 yrs. homeowner, 2 yrs. commercial
|
|
MSRP*
|
$3,599
|
$8,499
|
Commercial Shredder-Chippers
The Merry Commercial Shredder-Chippers by MacKissic not only offer more features but will out-perform and out-last other commercial shredder-chippers in the market. Whether it is the big SC262 or the smaller 12PHT, these chippers are built with the commercial and rental customer in mind. The SC262 is built with strong 7-gauge steel while the 12PHTs have 12-gauge steel.

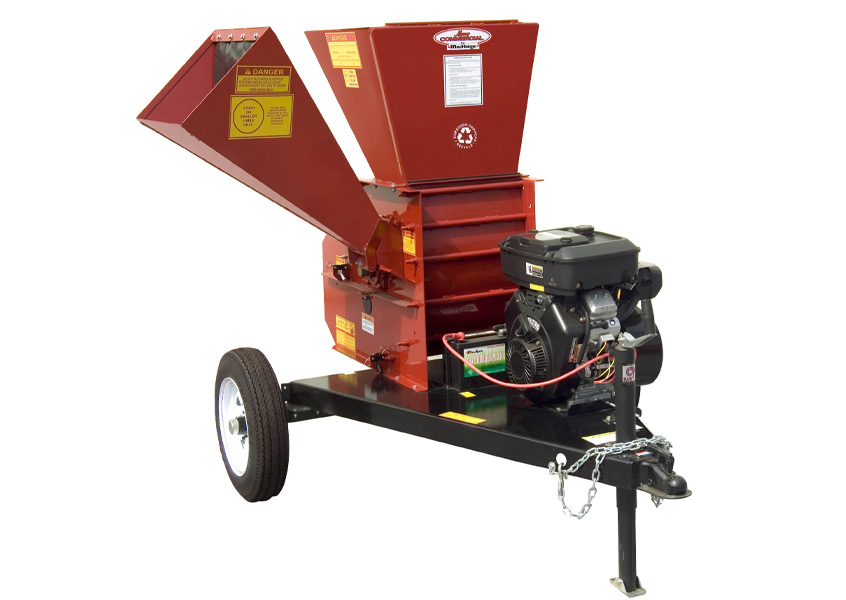

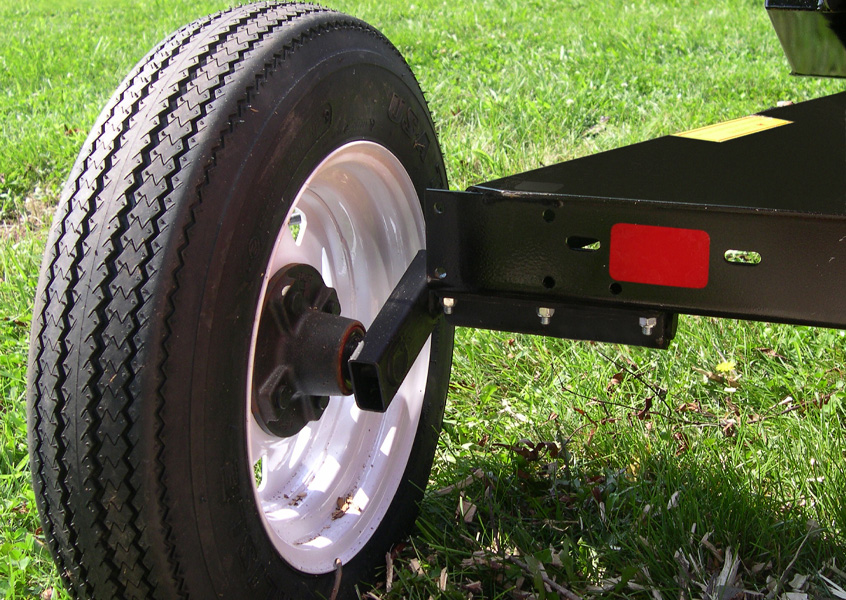

The SC262 is powered by a 18 HP Vanguard V-twin engine and will chip 4” branches. The shredder has 48 free-swinging hammers that can be reversed for extended life. The SC262 is highway towable with a strong 7-gauge reinforced steel trailer. The trailer has independent flexride suspension for smoother towing and less wear on the machine. The chipper has two tool steel blades that are resharpenable and has an outside adjustable wear plate to easily maintain smooth chipping action. This is a special tool and die grade steel.

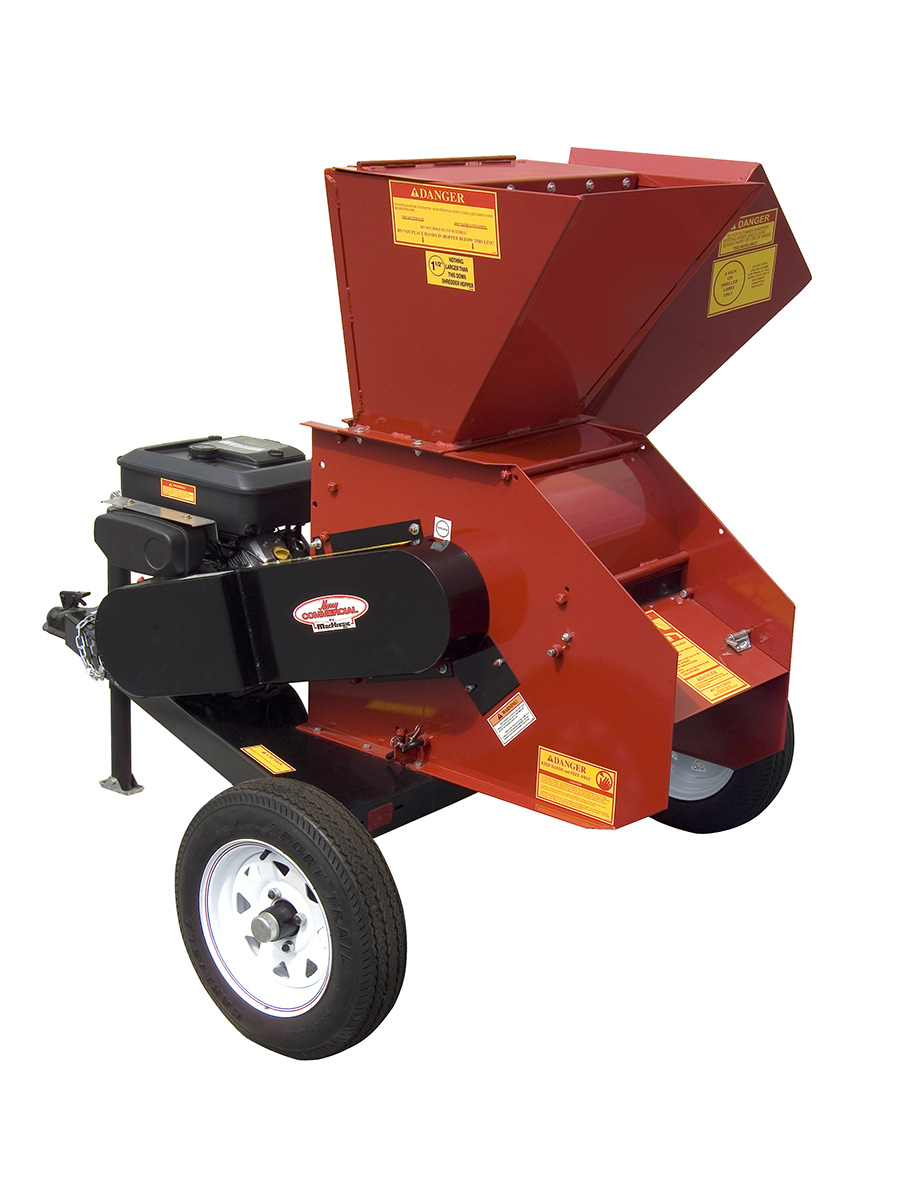

The 12PHT is powered with a Honda GX240 Commercial engine. This highway towable chipper-shredder is small and compact yet still provides the power, dependability, and usability that much larger chipper-shredders offer. With its 24 free-swinging heat-treated hammers, the shredder pulverizes leaves, yard debris and just about any organic material. The hammers are reversible with 4 edges, saving time and effort by reducing the frequency of purchasing new hammers. The chipper features a single tool steel blade that is resharpenable and also has an outside adjustable wear plate for maintaining the correct gap distance for even chipping.
*Note: Prices shown are suggested retail and do not include freight, dealer set up, or applicable local taxes in US Dollars. Prices and specifications are subject to change as new developments and improvements are made.
Parts List and Schematics
Accessories
|
12PHT |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| 900-0133 | Standard replacement welded bar screen | 3.5 lbs. | $176.00 |
|
SC262 (Older Models: SC260) |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| 912-3530 | Light and fender kit | 50 lbs. | $269.00 |
| 912-2409 | Discharge screen, standard bar grate | 16 lbs. | $339.00 |
| 912-2410 | 3/4″ diameter hole screen | 5.5 lbs. | $299.00 |
| 912-3531 | Tongue Jack Caster | 15 lbs. | $49.00 |
Parts
Click for a 12PHT parts list and exploded view. (pdf)
Click for a SC262 parts list and exploded view. (pdf)
