Model
|
|
|
|---|---|---|
|
Power or Engine
|
Battery or B&S
|
B&S
|
|
Capacity
|
22 gal.
|
50 gal.
|
|
Pump
|
Diaphragm or Piston
|
Piston
|
|
Gallons per Minute
|
3.0 gpm
|
3.0 gpm
|
|
PSI
|
up to 300
|
up to 300
|
|
Pressure Relief Valve
|
Adjustable
|
Adjustable
|
|
Spray Gun
|
Adjustable spray tip w/ extension
|
Adjustable spray tip w/ extension
|
|
Hose Length
|
25′
|
25′
|
|
Tires
|
10″ pneumatic
|
16″ pneumatic
|
|
Hose Storage
|
Steel hose rack
|
Steel hose rack
|
|
Start
|
Manual
|
Manual
|
|
Length
|
39″
|
76″
|
|
Width
|
29″
|
36″
|
|
Height
|
38″
|
35″
|
|
Weight (lbs.)
|
120
|
160
|
|
Machine Warranty
|
2 Year Consumer
|
2 Year Consumer
|
|
Engine Warranty
|
2 Year Consumer
|
2 Year Consumer
|
|
MSRP*
|
$1,099 – $1,799
|
$2,299 – $2,999
|
Lawn, Yard & Garden Sprayers
Gas & Battery Powered Sprayers

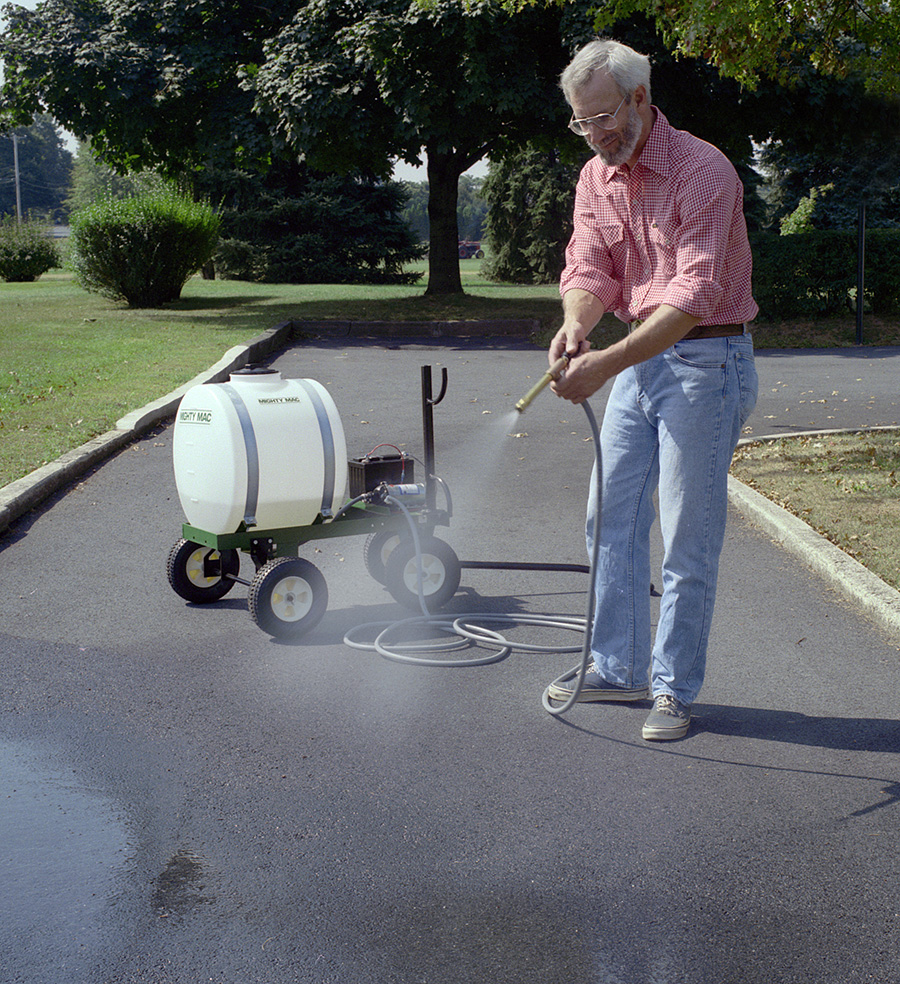

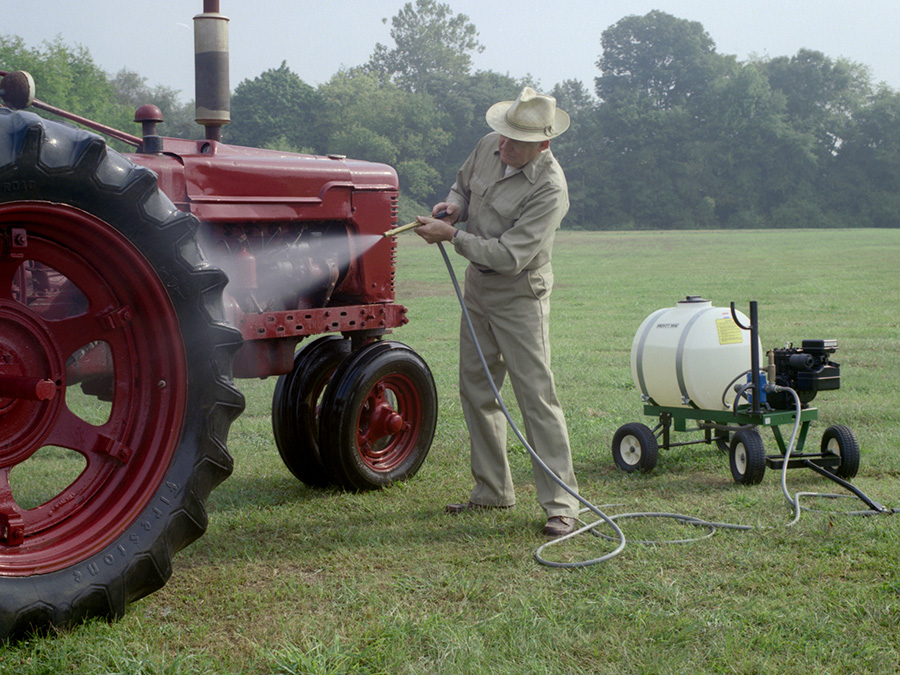

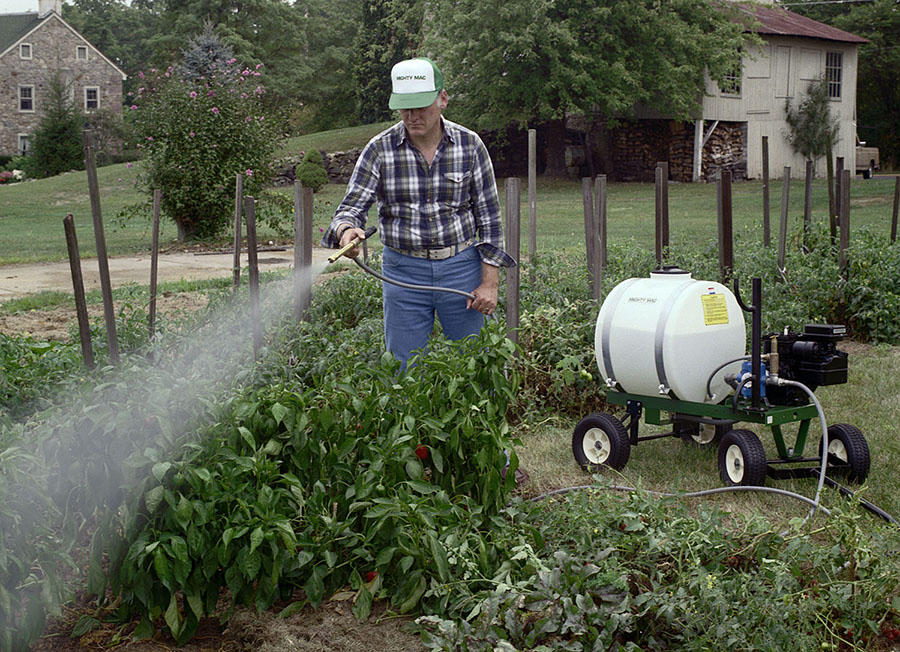

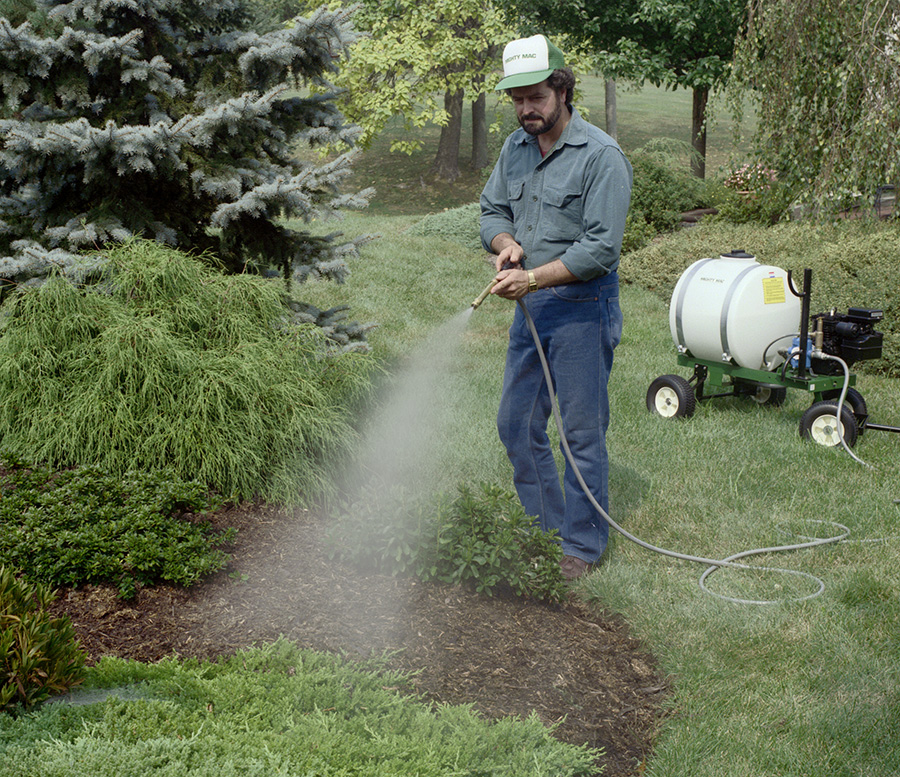

Mighty Mac® sprayers by MacKissic are powerful and versatile sprayers that will allow you to have a professionally looking lawn in less time than it takes to mow. MacKissic 22 & 50 gallon sprayer tank models can be used year round.

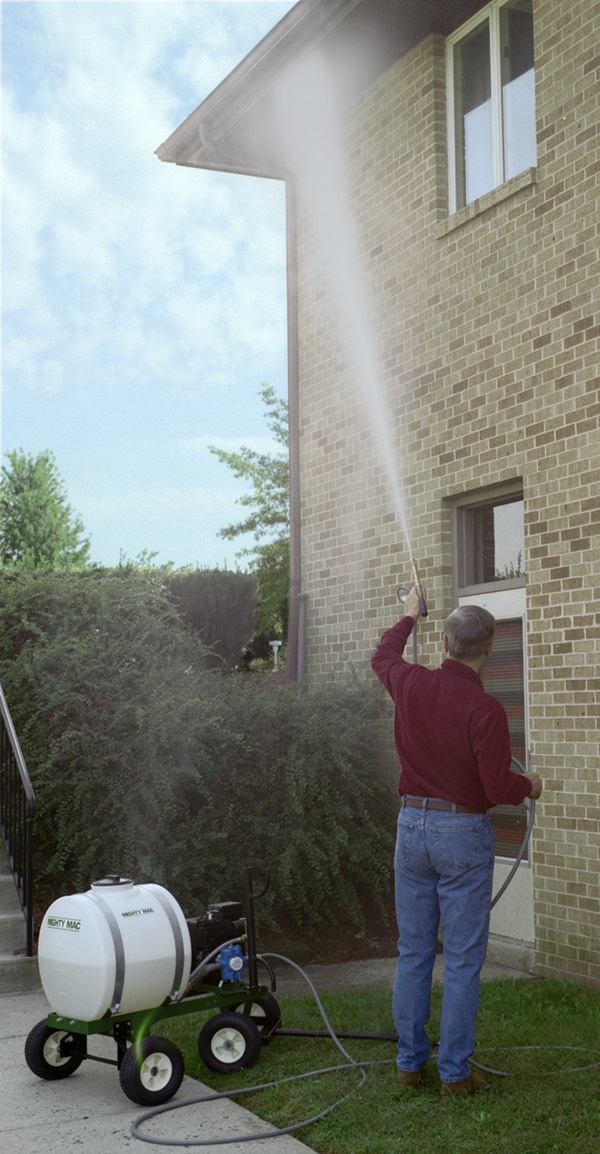

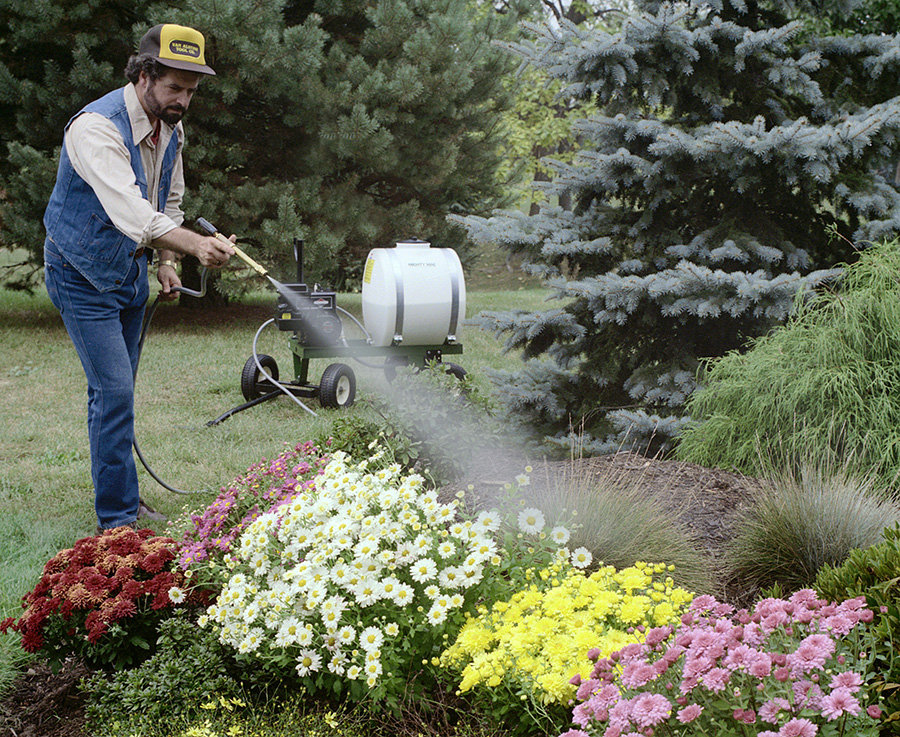

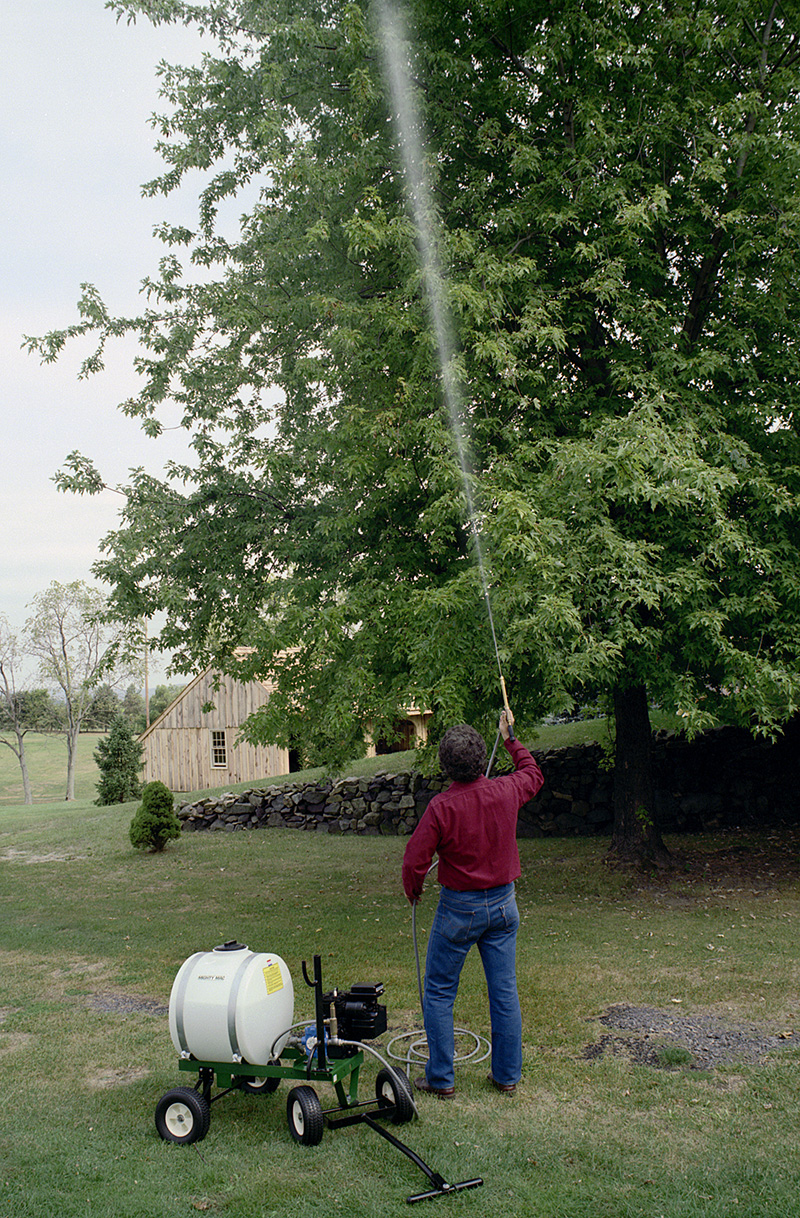

Mighty Mac® sprayers are powerful enough to reach the tops of trees as tall as a three story house, yet can be gentle enough to water flowers with a fine mist.
There are two lines of sprayers: battery powered sprayers and gas powered sprayers. The battery powered sprayers are quiet and lightweight to move around. The gas powered sprayers have more power which allows them to spray farther and more per minute.

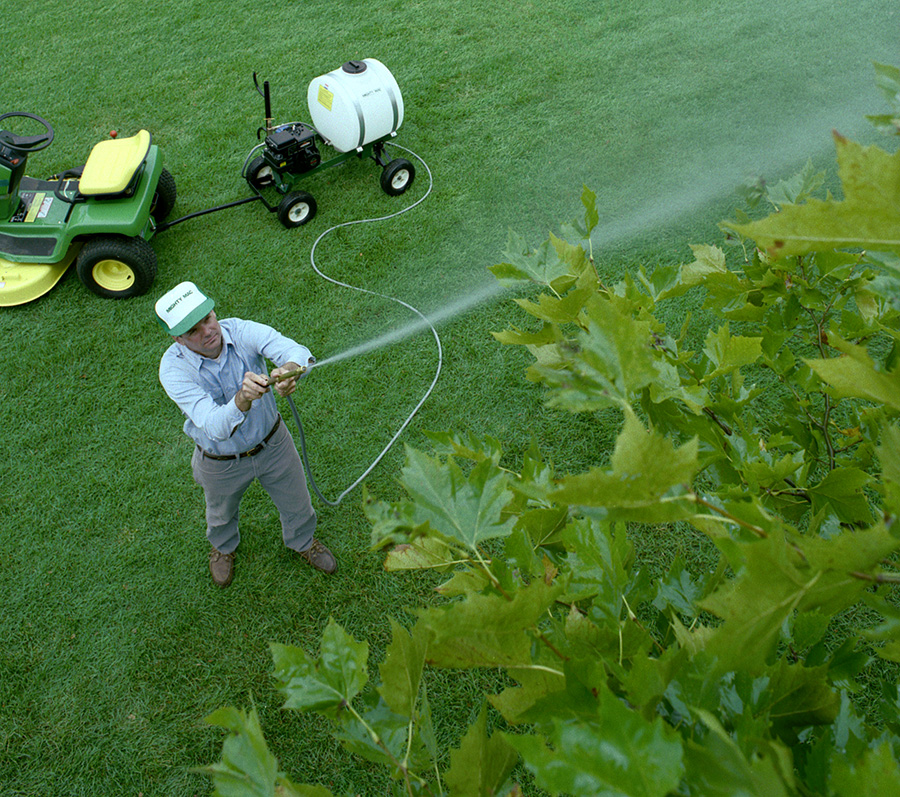

The tow behind sprayers with a boom spray gun are easy to move about as they attach to a pin hitch with plenty of hose for the user to stay on the vehicle while spraying. Our pressurized tank sprayers are designed with twin piston pumps for greater throwing power than other pump designs.
*Note: Prices shown are suggested retail and do not include freight, dealer set up, or applicable local taxes in US Dollars. Prices and specifications are subject to change as new developments and improvements are made.
Parts List and Schematics
Accessories
|
PS322T and PS322TE |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| 100-0102 | Brass spray gun extension- PS322T only | .4 lbs. | $55.00 |
| 100-0112 | Extra 25′ hi-pressure hose with fittings- PS322T only | 3 lbs. | $99.00 |
| 100-0112A | Extra 50′ hi-pressure hose with fittings- PS322T only | 5.6 lbs. | $159.00 |
| 100-0112B | Extra 75′ hi-pressure hose with fittings- PS322T only | 8.2 lbs. | $199.00 |
| 100-0112C | Extra 100′ hi-pressure hose with fittings- PS322T only | 11.4 lbs. | $249.00 |
| 080-0026 | Hose coupler- PS322T only | .2 lbs. | $25.00 |
| 100-0159 | Pistol grip spray gun with extension- PS322T only | 2.2 lbs. | $169.00 |
| 108-0082 | Pull handle kit | 2 lbs. | $64.00 |
| 108-0083 | Jet agitation kit- PS322T only | .2 lbs. | $64.00 |
| 108-0084 | Pressure gauge kit | 1 lbs. | $105.00 |
| 108-0347 | Spray gun- PS322TE only | 1.5 lbs. | $55.00 |
| 4NB | Spray boom, 4 nozzle, sprays 80″ wide- PS322T only | 11 lbs. | $215.00 |
| 4NBE | Spray boom, 4 nozzle, sprays 80″ wide- PS322TE only | 11 lbs. | $215.00 |
| 6/8NSB | Combination 6 or 8 nozzles; 6 nozzle sprays 120″ wide, 8 nozzle sprays 96″ wide crop spraying- PS322T only | 23 lbs. | $359.00 |
|
PS350T and PS350T-10 |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| 100-0102 | Brass spray gun extension | .4 lbs. | $55.00 |
| 100-0112 | Extra 25′ hi-pressure hose with fittings | 3 lbs. | $99.00 |
| 100-0112A | Extra 50′ hi-pressure hose with fittings | 5.6 lbs. | $159.00 |
| 100-0112B | Extra 75′ hi-pressure hose with fittings | 8.2 lbs. | $199.00 |
| 100-0112C | Extra 100′ hi-pressure hose with fittings | 11.4 lbs. | $249.00 |
| 080-0026 | Hose coupler | .2 lbs. | $25.00 |
| 100-0159 | Pistol grip spray gun with extension-standard | 2.2 lbs. | $169.00 |
| 108-0083 | Jet agitation kit- standard PS350T-10 | .2 lbs. | $64.00 |
| 108-0084 | Pressure gauge kit | 1 lbs. | $105.00 |
| 4NB | Spray boom, 4 nozzle, sprays 80″ wide | 11 lbs. | $215.00 |
| 6/8NSB | Combination 6 or 8 nozzles; 6 nozzle sprays 120″ wide, 8 nozzle sprays 96″ wide crop spraying | 23 lbs. | $359.00 |
Parts
Click for a PS514T parts list and exploded view. (pdf)
Click for a PS322T parts list and exploded view. (pdf)
Click for a PS322TE parts list and exploded view. (pdf)
Click for a PS350T parts list and exploded view. (pdf)
Click for a PS350T10 parts list and exploded view. (pdf)
Click for a 4NB parts list and exploded view. (pdf)
Click for a 4NBE parts list and exploded view. (pdf)
Click for a 6/8NSB parts list and exploded view. (pdf)
