Model
|
|||
|---|---|---|---|
|
Category
|
“1” US and foreign tractors
|
“1” US and foreign tractors
|
“1” US and foreign tractors
|
|
Tractor HP
|
10-30 HP
|
16-45 HP
|
10 – 45 HP
|
|
PTO RPM’s
|
540
|
540
|
540
|
|
PTO
|
1 3/8″ six spline clockwise rotation
|
1 3/8″ six spline clockwise rotation
|
1 3/8″ six spline clockwise rotation
|
|
Knife Speed (mph)
|
81
|
86
|
120
|
|
Chipper Capacity
|
3-1/2″
|
4-1/2″
|
4-3/4″
|
|
Chipping Hits/Minute
|
2257
|
2071
|
2257
|
|
Chipper Hopper Opening
|
12-1/4″ x 8″
|
13″ x 9″
|
27″ x 17″
|
|
Chipper Hopper Throat
|
4″ x 3-1/2″
|
5″ x 4-3/4″
|
7-1/2″ x 5″
|
|
Flywheel Size
|
12″ x 1/2″
|
14″ x 3/4″
|
17-3/4″ X 5/8″
|
|
Flywheel/Rotor Weight (lbs.)
|
40
|
71
|
55
|
|
Shredder Capacity
|
1″
|
1-1/2″
|
N/A
|
|
Hammers
|
24
|
48
|
N/A
|
|
Shredding Hits/Minute
|
54,168
|
99,408
|
N/A
|
|
Shredder Hopper Opening
|
17-1/2″ x 16-1/2″
|
20″ x 17-3/4″
|
N/A
|
|
Shredder Hopper Throat
|
8-1/2″ x 4-1/2″
|
13-1/4″ x 7″
|
N/A
|
|
Rotor Weight (lbs.)
|
23
|
39
|
55
|
|
Start
|
Tractor
|
Tractor
|
Tractor
|
|
Transport
|
Tractor/PTO drive
|
Tractor/PTO drive
|
Tractor/PTO drive
|
|
Weight (lbs.)
|
288
|
460
|
247
|
|
Storage Space (L x Wheelbase x H)
|
42″ x 26″ x 52″
|
51″ x 28″ x 52″
|
55″ X 32″ X 56″
|
|
Machine Warranty
|
2 YR CONSUMER
|
2 YR CONSUMER
|
2 YR CONSUMER
|
|
MSRP*
|
$2,349
|
$3,549
|
$2,299
|
3-Point Wood Chipper Shredder Attachments
3 Pt Wood Chippers-Shredders for Tractors

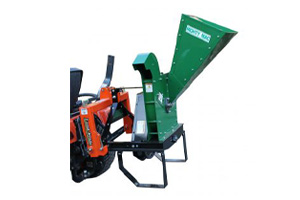

MacKissic offers two Mighty Mac® 3 point chipper shredder and one wood chipper for PTO use. These hammermill shredder chippers are easily attached to Category 1 tractors with traditional attachment methods. The dedicated wood chipper is also quick hitch compatible.
The best PTO wood chipper for you is the one that meets all your needs. All three of our chipper shredder PTO machines produce clean, crisp wood chips that are perfect for pathways, garden mulching, and professional-looking landscape.

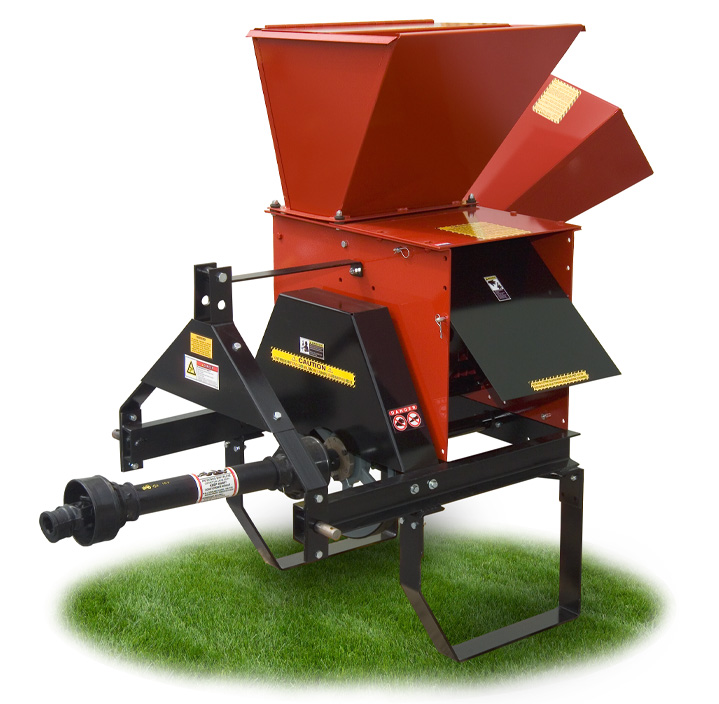

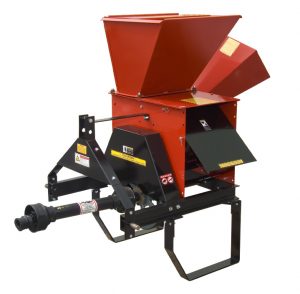

The 24 hammers of the TPH123 shredder chipper and the 48 hammers of the TPH185 chipper shredder machine will shred any type of organic debris including leaves, grass clippings, hay, small branches, flowers, soil, garden debris, hedge clippings, kitchen waste, manure, corn stalks, palm frond tops, potato vines, and tomato vines, to name a few. All of our equipment is made in the USA.
*Note: Prices shown are suggested retail and do not include freight, dealer set up, or applicable local taxes in US Dollars. Prices and specifications are subject to change as new developments and improvements are made.
Parts List and Schematics
Accessories
|

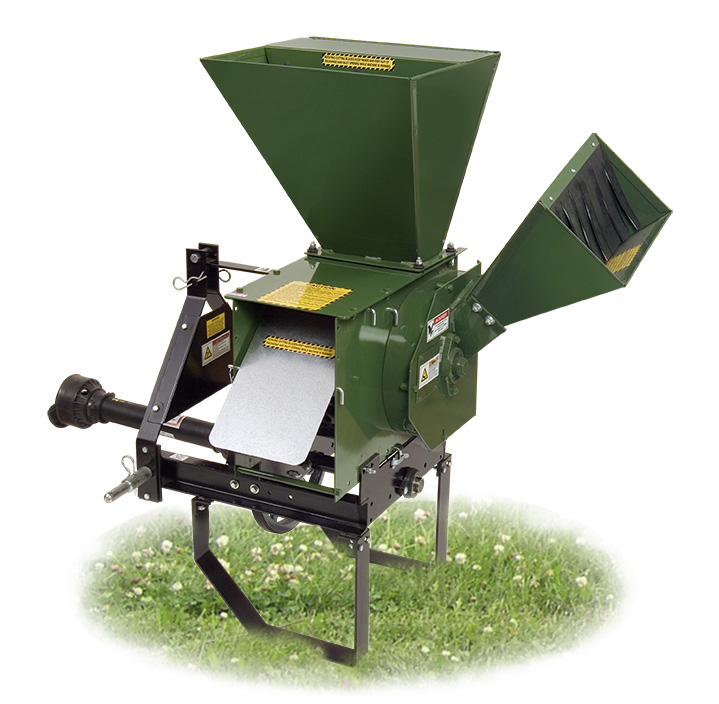

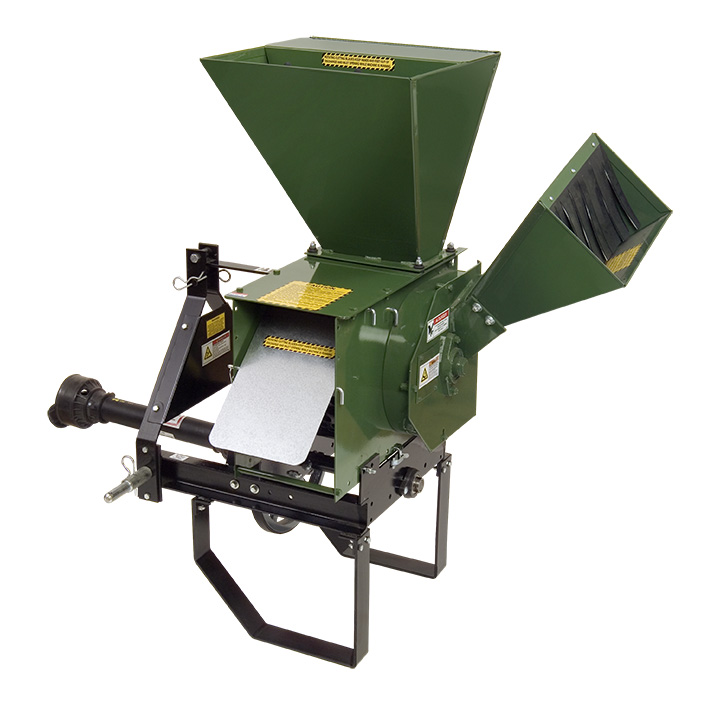

TPH123 (Older Models: TPH122, TPH12) |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| 500-0004 | Standard replacement 1″ diameter hole screen | 4 lbs. | $145.00 |
| 500-0052 | Optional screen 1/4″ | 4.2 lbs. | $145.00 |
| 500-0053 | Optional screen 1/2″ | 4.2 lbs. | $145.00 |
| 500-0054 | Optional screen 3/4″ | 4.2 lbs. | $145.00 |
| 500-0055 | Optional oblong stamped bar screen (3″ x 1-1/2″ oblong openings) | 3.5 lbs. | $145.00 |
| 900-0133 | Optional rectangular welded bar screen (1-3/8″ x 7-1/8″ rectangular openings) | 5.2 lbs. | $176.00 |
| 108-0082 | Optional pull handle kit | 2 lbs. | $64.00 |
| 908-0055 | Water resistant fitted cover | 2 lbs. | $105.00 |
| 900-0328 | Bagging kit | 4.5 lbs. | $145.00 |
| 800-0045 | Replacement bag only | 1 lbs. | $77.00 |
Parts
Click for a TPH122 parts list and exploded view. (pdf)
Click for a TPH184 parts list and exploded view. (pdf)
